Using a cable stripper, carefully remove about 15mm of the black PVC. Antsig Cable Stripping Tool is recommended for clean and consistent cut.
-

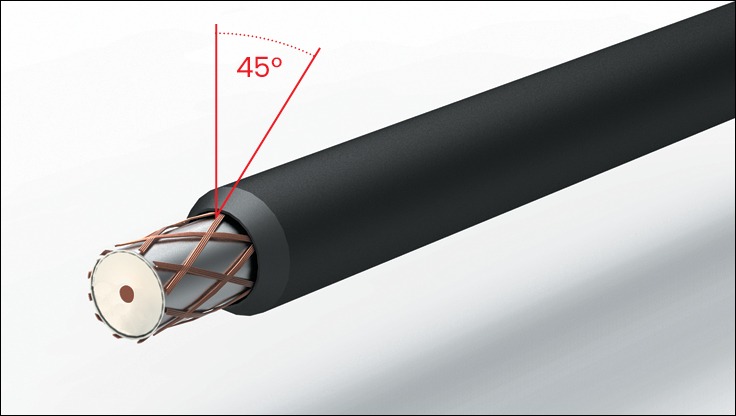

With a cutting knife, shave the new end of the black PVC to a 45° angle
-
Peel back the braid shield layers onto the black PVC to expose the inner white PVC
-
Again using the cable stripper, carefully remove about 10mm of the inner white PVC to expose the core conductor
-

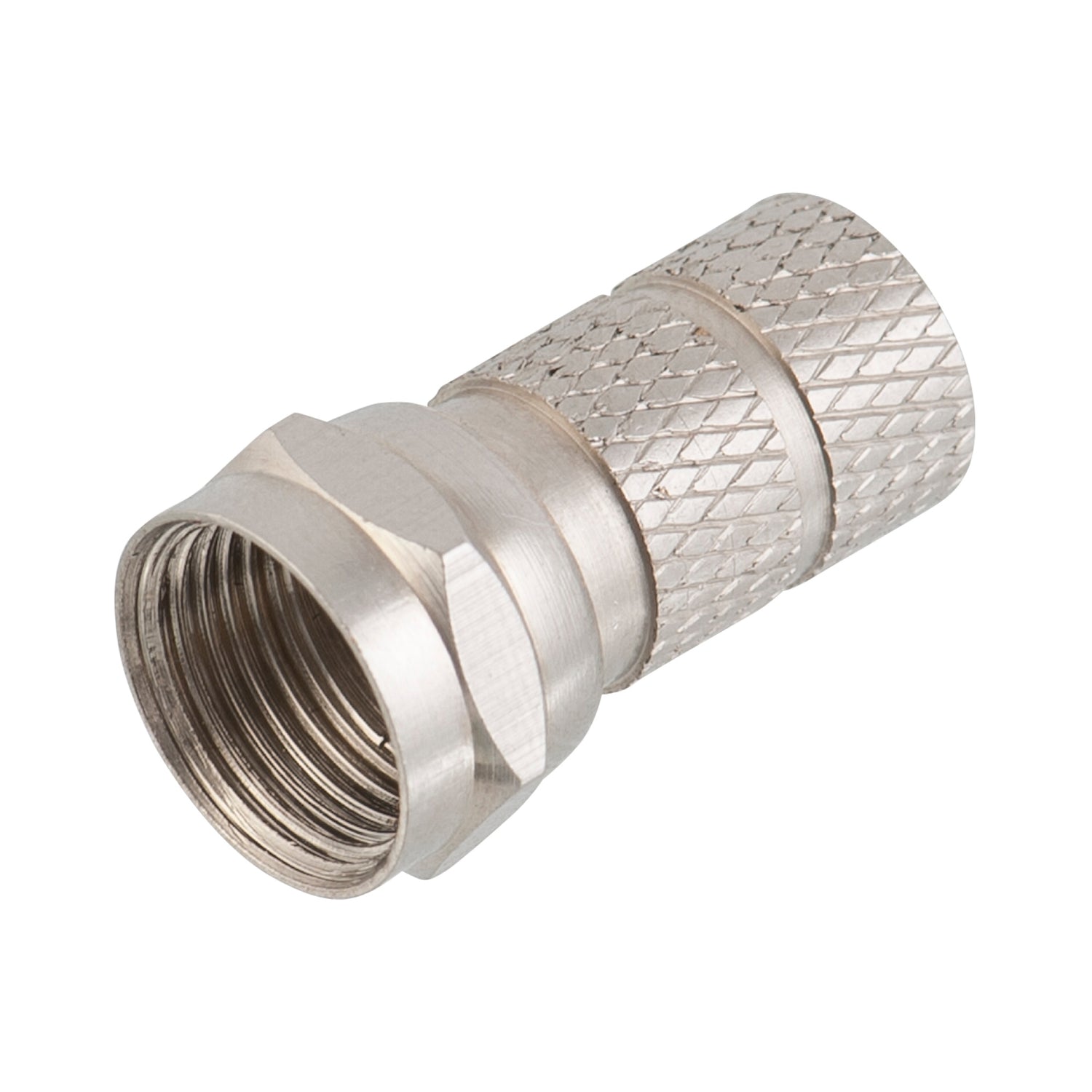

Insert and push the core conductor into the Twist-On Type F-Connector.
-
Securely attach by screwing the Type F-Connector onto the cable. Keep screwing the Type F-Connector to the cable until the white PVC appears flush with the inner face of the screw well
-
For a clean finished cable, remove any excess shield residual with a sharp tool. The exposed core conductor must not protrude past the end of the F-Connector by 3mm.
