- Using a cable stripper, carefully remove about 15mm of the black PVC to expose the braid shield. Antsig Cable Stripping Tool is recommended for clean and consistent cut.
-
Peel back the braid shield layers onto the black PVC to expose the inner white PVC.
- Again using the cable stripper, carefully remove about 10mm of the inner white PVC to expose the core conductor.

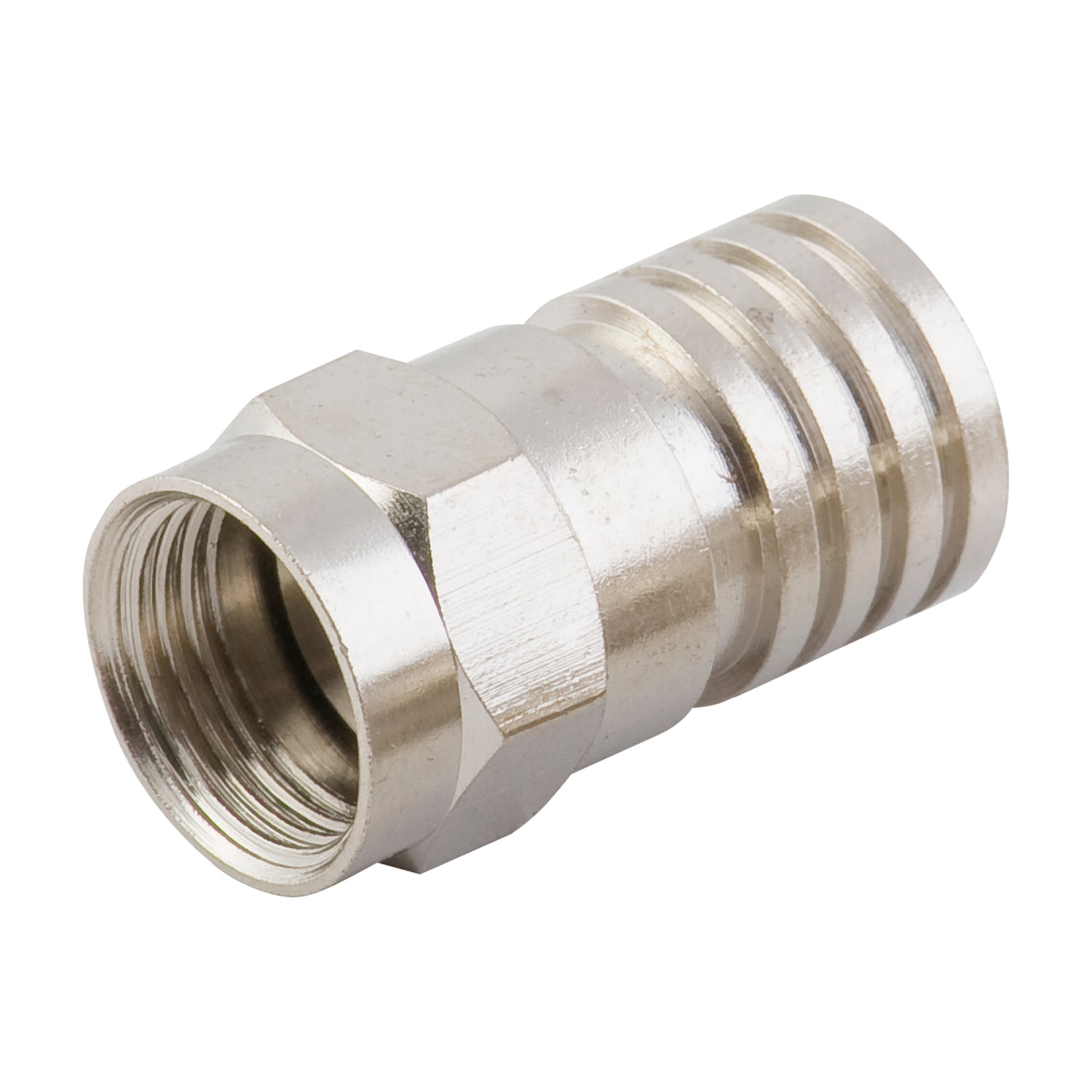

- Insert and push the core conductor into the inner circle flange of the Crimp Type F-Connector. Ensure to carefully insert the Type F-Connector inner circle flange between the white PVC and braid shield.
- Push the cable through the Type F-Connector until the white PVC appears flush with the innerface of the screw well.
-
Securely crimp the Type F-Connector to the cable using a crimping tool.
-
For a clean finished cable, remove any excess shield residual with a sharp tool. The exposed core conductor must not protrude past the end of the F-Connector by 3mm.
